SEPPES automated conveyor system door
Maintain environmental segregation
Conveyor system often connect areas with different cleanliness levels, temperatures, humidity, or air pressure. An industrial door closes quickly during gaps between material transfers, greatly reducing air exchange. For example, between a cold storage room and a room-temperature area, it prevents cold air leakage and condensation.
Reduce cross-contamination risks
In the food, pharmaceutical, or chemical industries, conveyor lines may move materials from a high-cleanliness zone to a general area. An industrial door blocks dust, microorganisms, or foreign particles from drifting back into the clean zone, helping meet GMP or HACCP certification requirements.
Enable uninterrupted conveying through automation
By integrating with the conveyor line control system, the industrial door can achieve "door opens as load approaches, closes after load passes" without manual operation or waiting. This preserves isolation effectiveness while maintaining conveying efficiency, especially suitable for high-frequency automated production lines or logistics sorting systems.
Energy saving
Without a door, a conveyor opening in an air-conditioned or heated area would result in continuous air leakage and high energy loss. An industrial door with fast opening/closing only opens during the brief moment materials pass through, providing clear energy-saving benefits with a short payback period.
high speed conveyor door
challenge

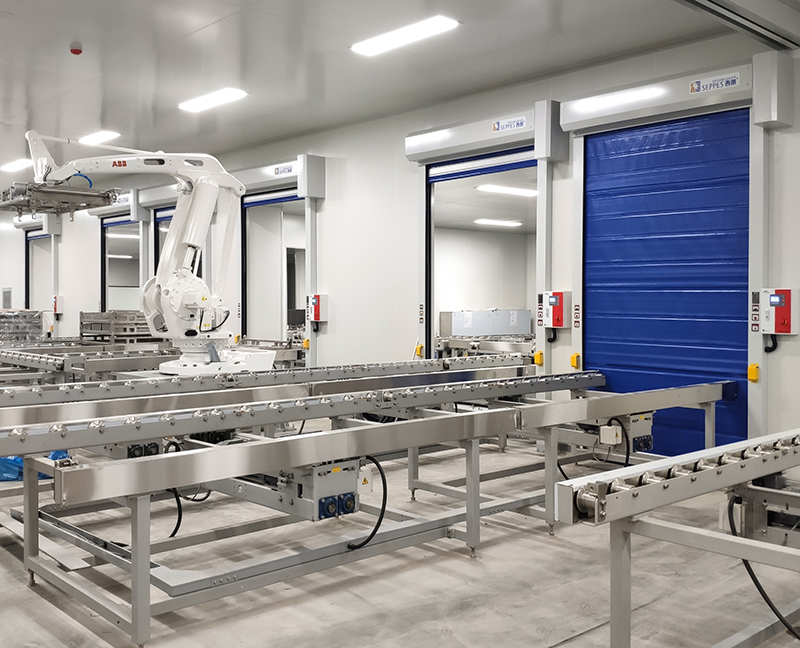

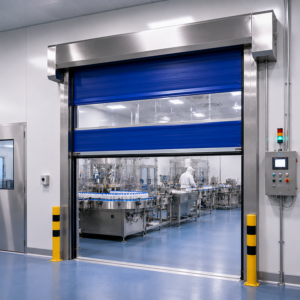

A pharmaceutical company needed to transport temperature-sensitive products between the cold storage and production areas using an automated roller conveyor system. Traditional doors had long opening times, causing temperature fluctuations, cold loss, and interruptions in automated logistics. Additionally, the client required higher hygiene standards and reduced manual intervention.
SEPPES Solution
SEPPES provided the client with customized rapid cold storage doors, integrated with the roller conveyor and PLC control system. When products arrive at the door, it opens automatically and closes immediately after the materials pass. The solution combines high-speed operation of up to 1.5 m/s, thermal insulation, low-temperature resistance, and intelligent synchronized control, ensuring continuous transport while maintaining stable environmental conditions.
Results
- Door opening time reduced by 40%
- Conveyor efficiency increased by 35%
- Cold loss reduced by 25%
- Workshop temperature stably maintained between +5 °C and +25 °C
- Achieved 24/7 automated material transport, minimizing manual intervention
SEPPES automated conveyor system door Work Flow
Seamlessly integrate automated doors with conveyor systems to ensure smooth material flow, minimize downtime, and enhance safety. Doors respond in real-time to conveyor signals for continuous operation
SEPPES conveyor door For sale
As one of the leading industrial doors manufacturers, SEPPES provides intelligent industrial door solutions designed for robotic automation environments, integrate with robots, PLC, conveyors, and automated production lines to improve efficiency, safety, environmental control, and seamless material flow across modern factories and warehouses.

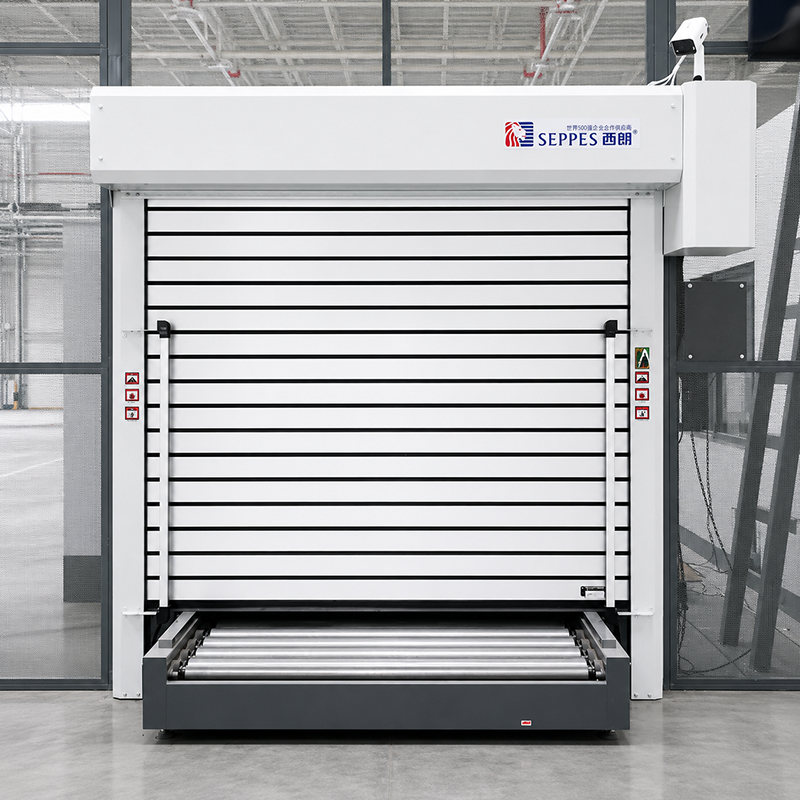

rigid overhead door
Built with insulated aluminum panels for strong sealing, sound insulation, and heat preservation. Suitable for complex production lines with limited installation space.

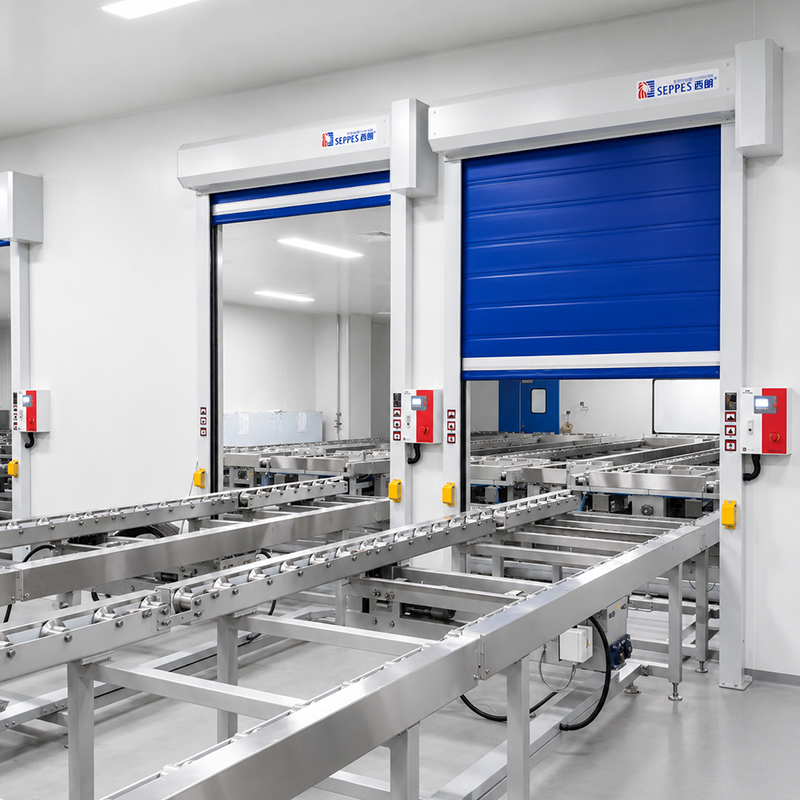

cold storage doors
For cold rooms, warehouses, and food storage areas. They help reduce temperature loss and improve energy efficiency. The curtain is available in double-layer 0.8 mm material with aluminum foil air-cushion insulation.

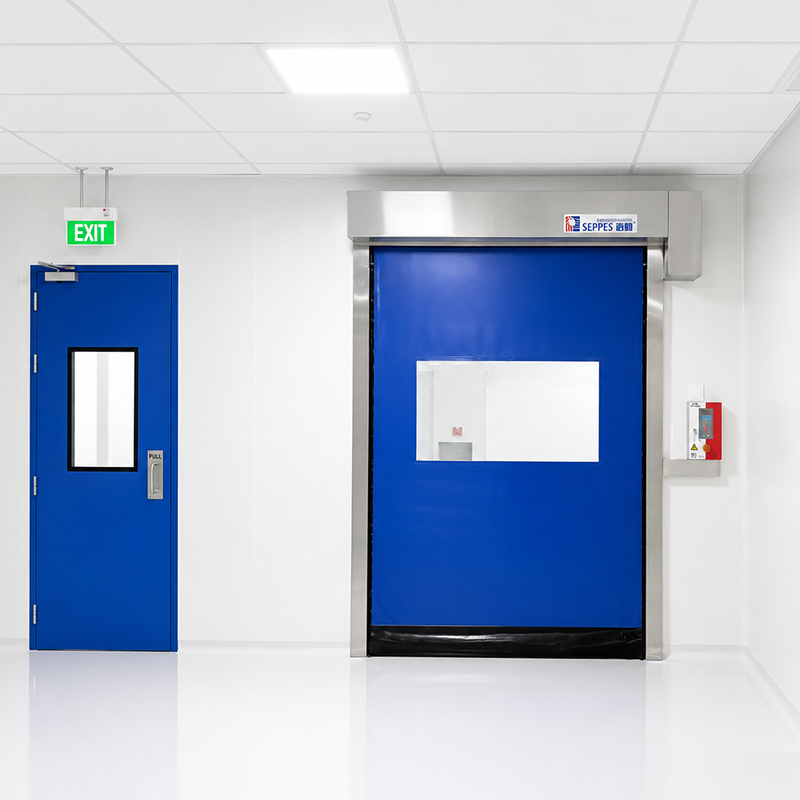

clean room conveyor doors
SEPPES clean room automatic conveyor doors are designed to integrate seamlessly with conveyor systems, enabling fast, automated material transfer while maintaining cleanroom pressure, contamination control, and production efficiency.

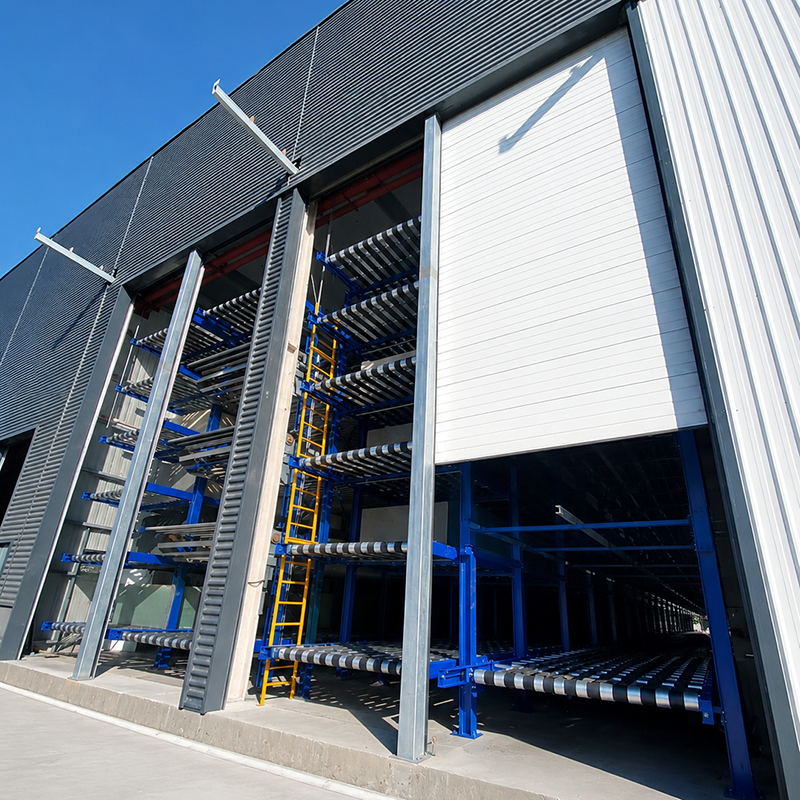

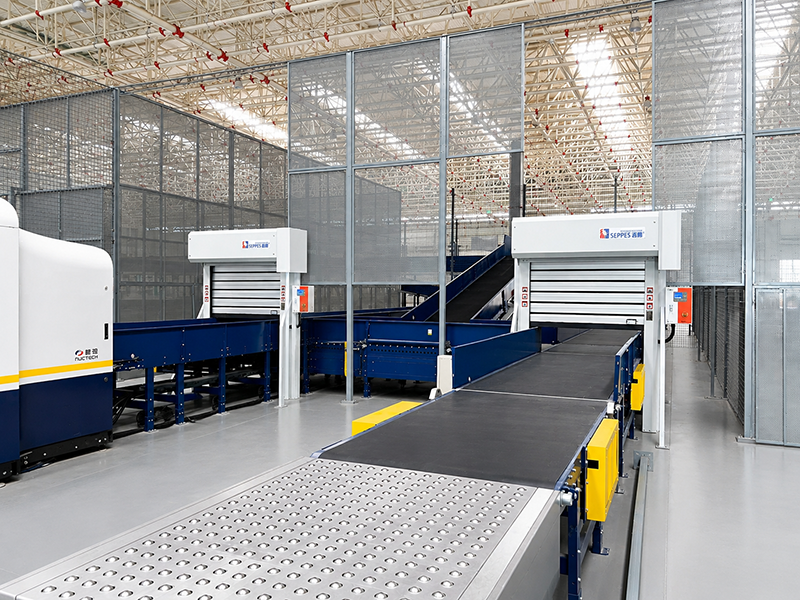

storage facility conveyor door
Storage Facility Conveyor Doors are engineered to connect conveyor lines with storage operations, providing fast, automated access while reducing energy loss, improving material flow, and increasing warehouse efficiency.

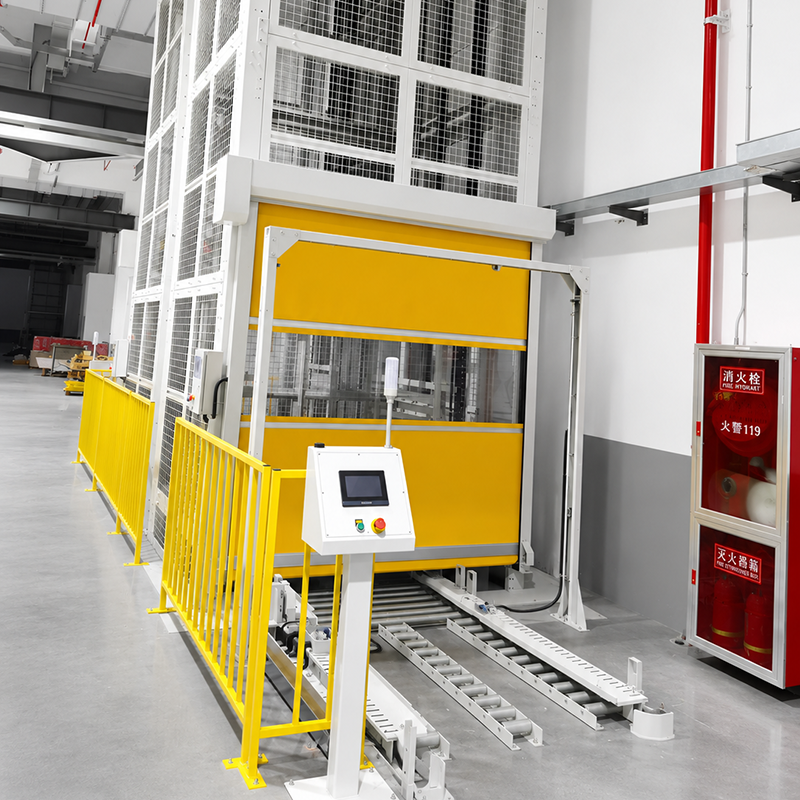

vertical lift conveyor door
Vertical Lift Conveyor Doors provide automated vertical opening for conveyor applications, maximizing space efficiency, ensuring smooth material transfer, and improving workflow speed and operational safety.

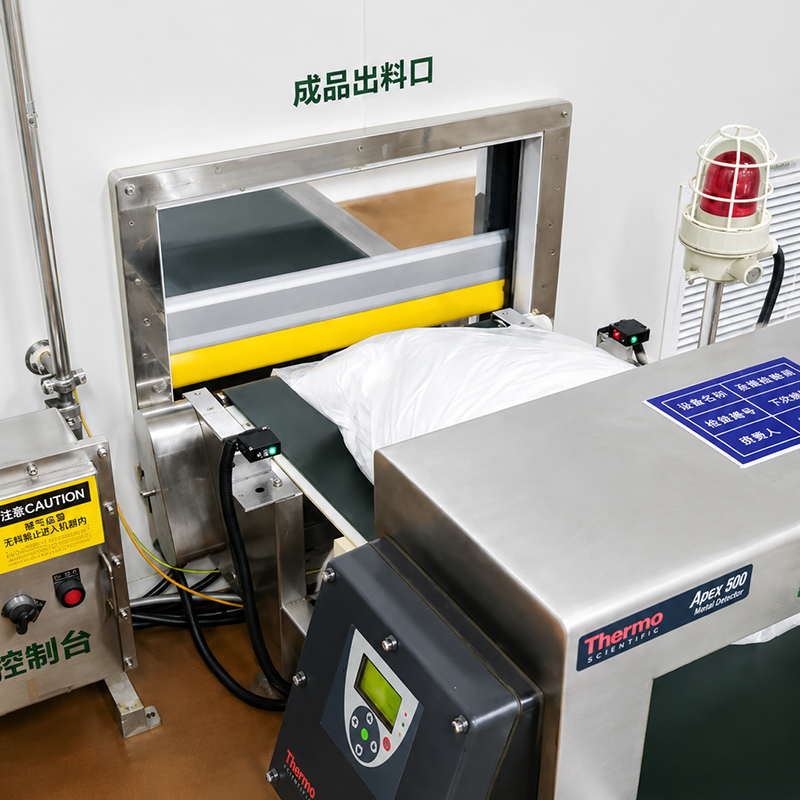

Mini conveyor door
Vertical Lift Conveyor Doors provide automated vertical opening for conveyor applications, maximizing space efficiency, ensuring smooth material transfer, and improving workflow speed and operational safety.
Advanced Safety Features for conveyor door system
SEPPES industrial doors incorporate multiple safety measures to ensure personnel protection and secure robotic workflows.
Presence Sensor

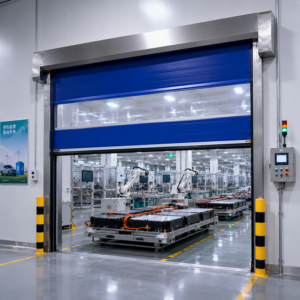

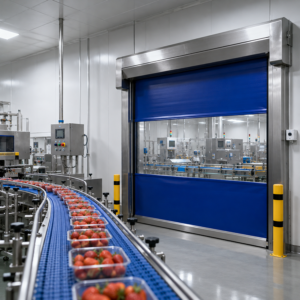

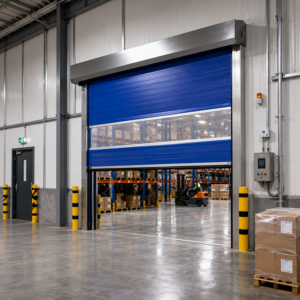

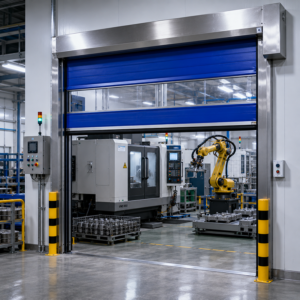

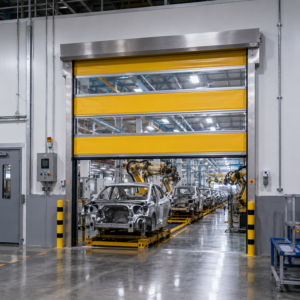

Applications Across Smart Manufacturing Industries
automated Line conveyor door FAQ
1. Will the door press on the conveyor belt when closing?
SEPPES high speed automotive doors are designed with conveyors, materials, and suspended items in mind. We offer two solutions:
- Solution 1: Install light curtains or photoelectric sensors on both sides of the frame. The door will not close if the belt or materials haven’t fully passed, preventing collisions.
- Solution 2: For fixed conveyor positions, we can customize a bottom groove or split sealing strip on the curtain to avoid the belt while maintaining sealing elsewhere.
Our engineers will measure on-site and confirm installation drawings to ensure the belt is never damaged.
2. The door opens and closes hundreds of times per day. How long will the motor last?
SEPPES as industrial doors manufacturers use German servo motors rated for 800–1000 cycles per day and continuous operation over 10 years (actual lifespan depends on environment; project references available).
If a motor fails, it’s recommended that local service teams handle replacement for safety and parameter matching. Alternatively, if your site has an electrical engineer, we provide a spare motor and step-by-step replacement guide.
3. Can the door detect if there is a load on the conveyor and stay open while products pass?
Yes. SEPPES doors can integrate with your conveyor control system:
- Simple version: Sensors at the conveyor entrance keep the door open while products pass; the door closes after a set idle time (adjustable, e.g., 5–10s).
- Advanced version: Direct PLC or MES integration to track conveyor activity and automate “door moves with line, closes when line stops.”
We have implemented this for automotive parts and e-commerce logistics centers and can provide reference videos.
4. What happens if the curtain is hit? Do I need to replace the whole door?
Our soft-fast doors feature a self-resetting collision design:
- Minor collisions: Curtain pops out of the track; simply reinsert manually in one minute.
- Severe damage: Only the curtain needs replacement; the motor, track, and control box remain intact. Replacement is typically 2–3 days, costing far less than a full door (usually 15–20% of full price).
Flexible crash columns and guide rollers absorb most impact, minimizing damage risk.
5. Does the door leak air in air-conditioned or heated workshops?
SEPPES industrial roller door use a four-side multi-layer sealing system:
- Top & sides: EPDM rubber seals, elastic and aging-resistant.
- Bottom: Safety airbag bottom edge, adapts to ±5mm uneven floors.
- Door panel: 40mm high-density polyurethane core (λ = 0.022 W/(m·K)).
Tests show over 85% reduction in airflow with a 20°C temperature difference and 5 m/s wind. For cleanrooms, we can provide ISO 14644 air-tightness reports.
6. What if the door suddenly won’t close? Can the production line continue?
Multiple emergency mechanisms prevent line stoppage:
- Manual release: Hand chain or crank lifts the curtain if power fails.
- Emergency button: Forces door open regardless of sensor logic.
- Fault self-diagnosis: Display shows error codes for on-site reset (e.g., blocked sensors, lost limit switch).
7. Can your doors interface with our existing central control system?
Yes. Standard dry contact (passive) signals are compatible with most PLCs, including Siemens, Mitsubishi, Omron, Rockwell, Delta, Inovance, etc.
- Switch signals: Open/close commands with door position feedback.
- Communication protocols: Modbus RTU/TCP for operation data and fault codes; can integrate with SCADA or MES.
Detailed wiring diagrams and protocol documents are provided.
